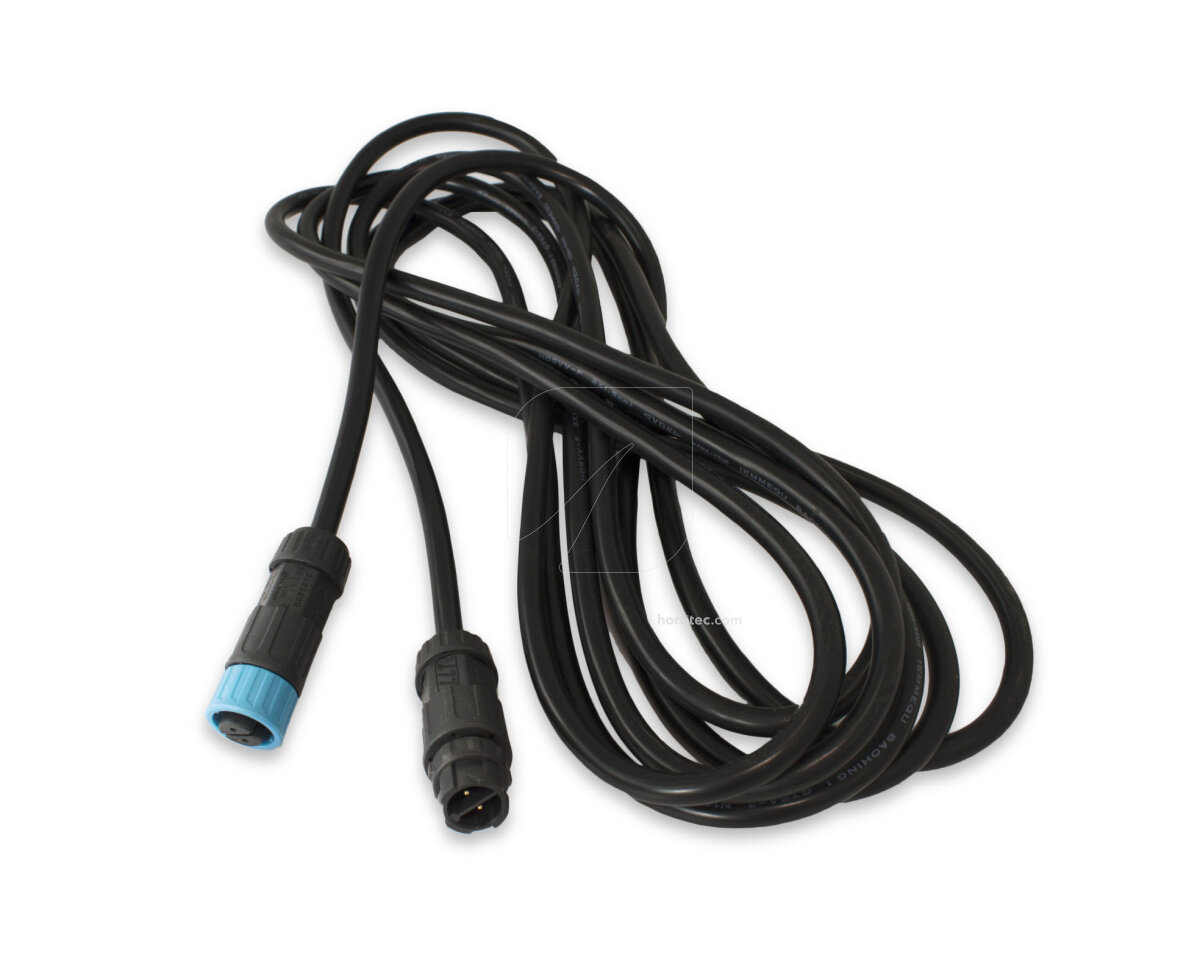

Cable extension (2 uds) driver remote zeus-newmodel lumatek

To customise and optimise your grow space, you have Lumatek extension cables at your disposal with which you can connect your LED devices to the Lumatek controller, without worrying about the distance between your LED systems and the controller, as they have a length of 5 metres.

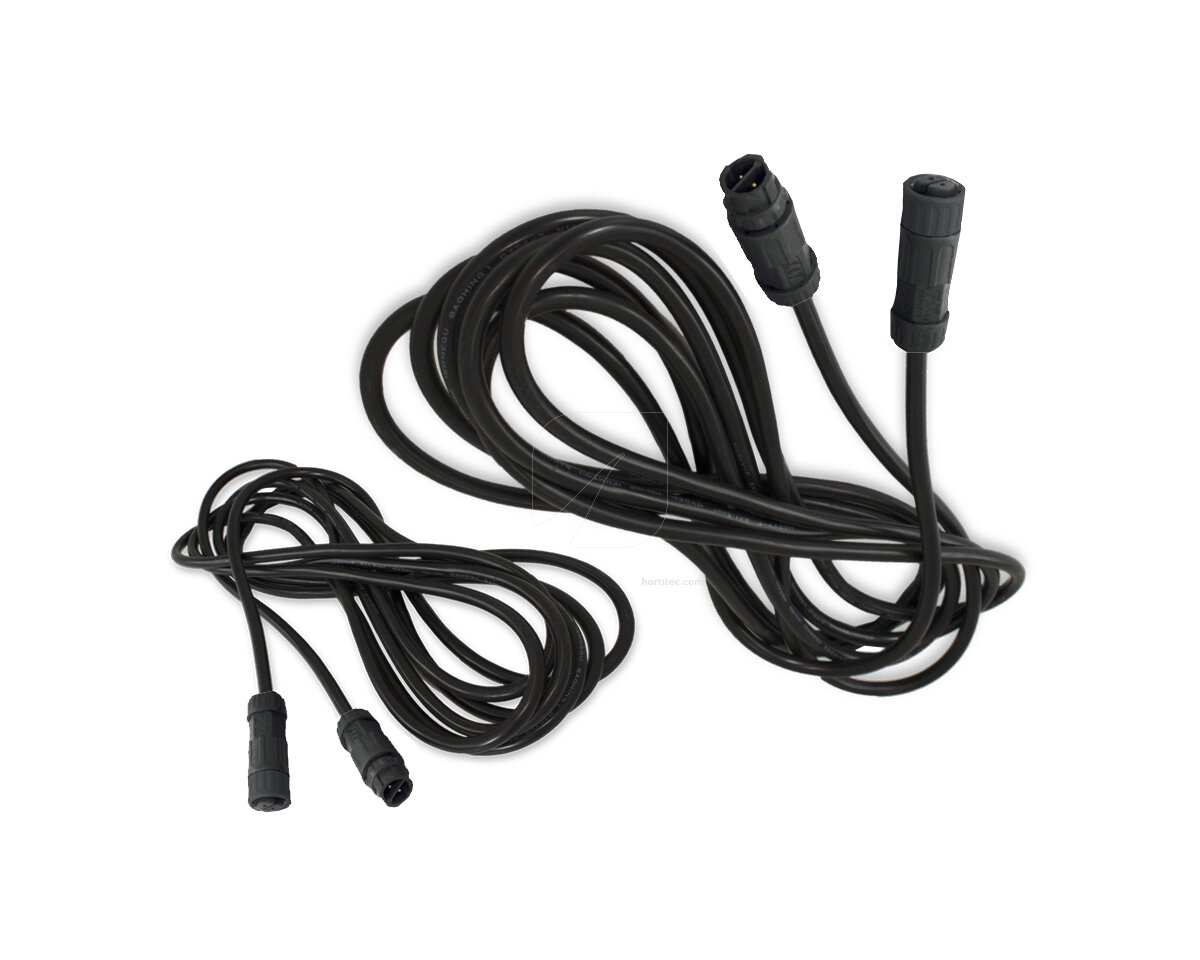

You will find a 5m extension power supply cable for the LED controller and a 5m extension dimming cable.

You can use the 2 pcs driver remote extension cables with:

• Ref#612339
• Ref#612341
• Ref#612364

To use the driver away from the structure, one per Zeus is required.

Specifications

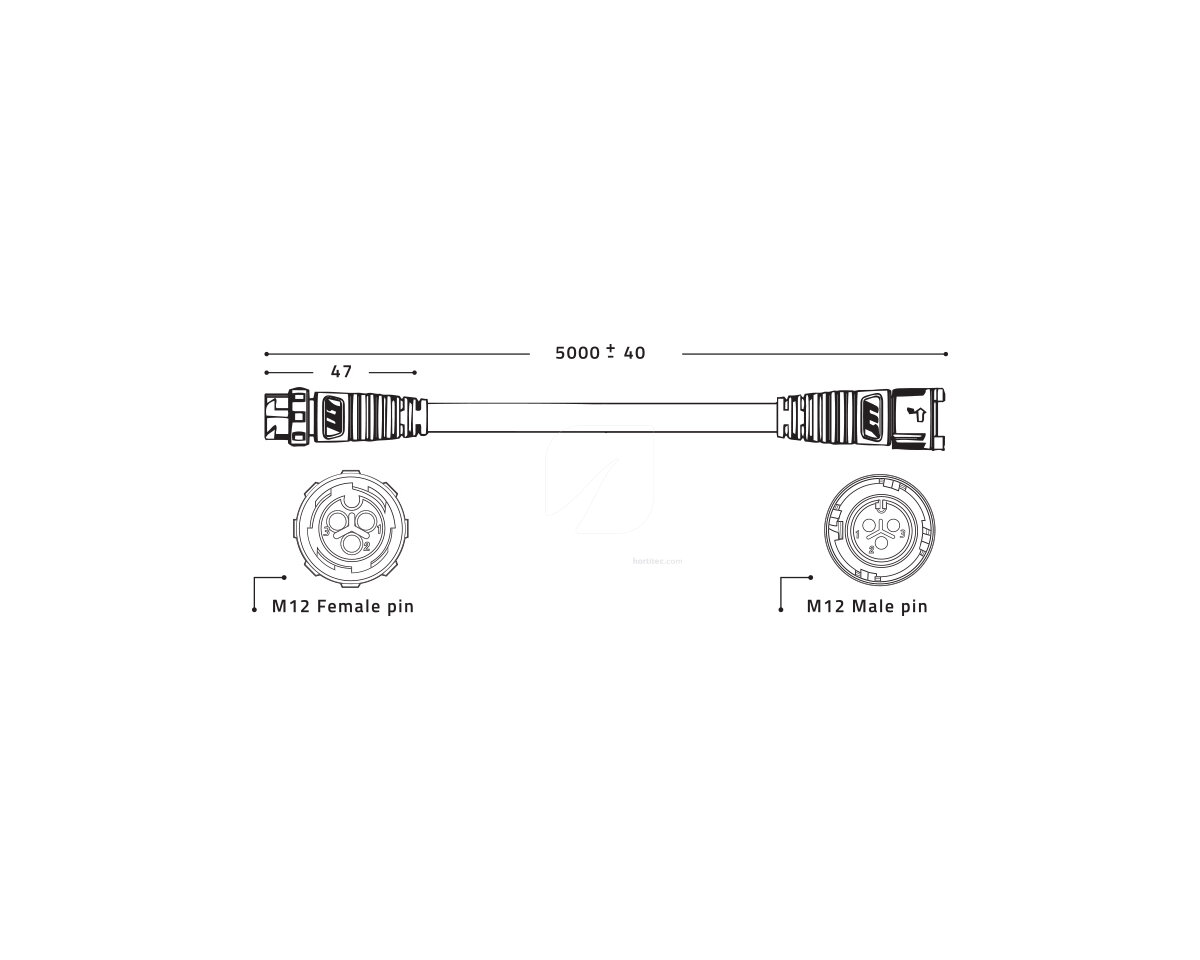

5 m extension power cable for LED driver

• The withstand voltage between any two poles is 500 VAC, 2 mA.
• Supported voltage between outer sheath and electrode is 500 VAC, 2 mA.
• Insulation resistance: 100MΩ @ 100V
• Temperature Resistance: 105℃
• Operating Temperature: -20℃ to 105℃
• Storage Temperature: -25℃ to 105℃
• IP65
• RoHS compliant

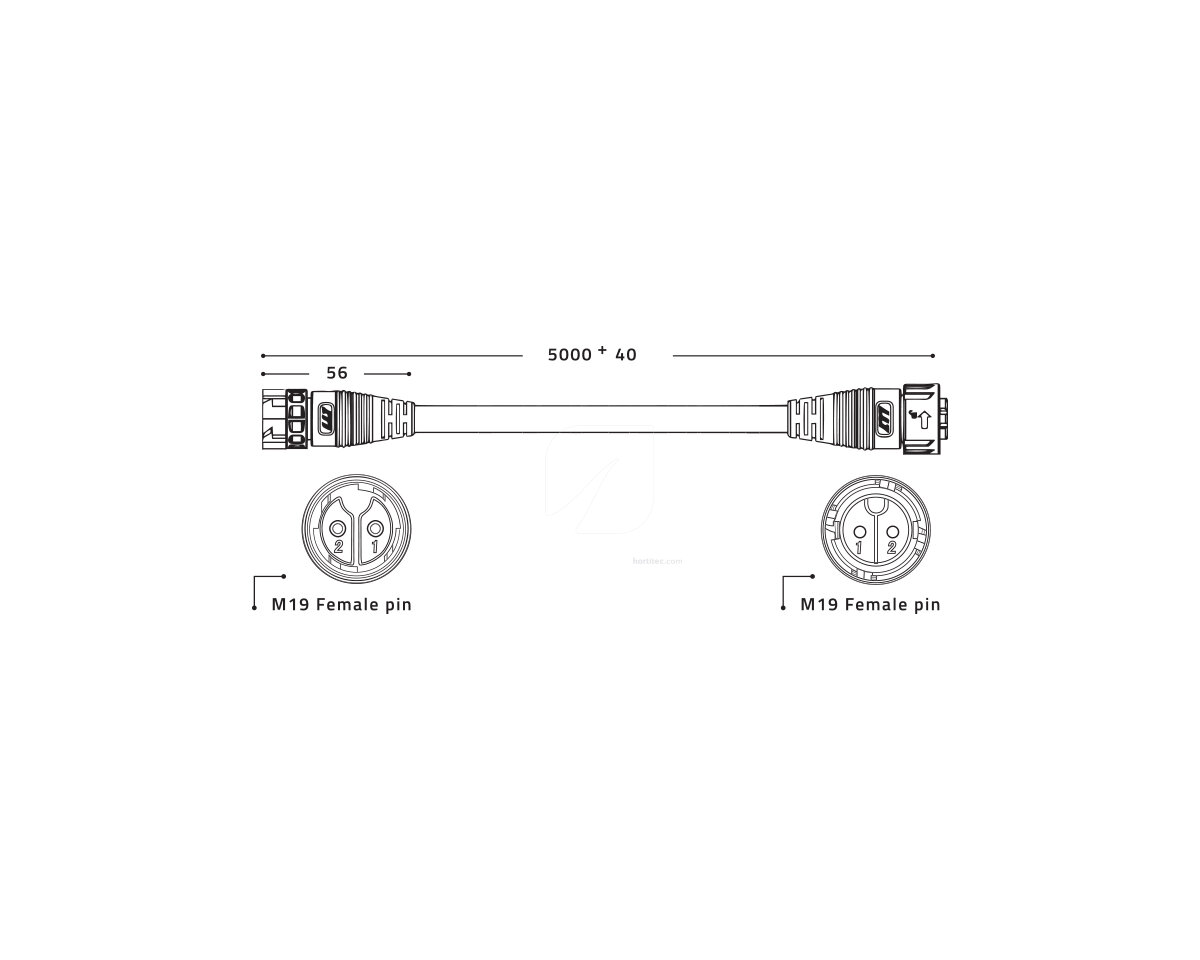

5m extension dimming cable for LED driver

• M19-2 Injection moulded male and female self-locking with 5m extension cable.
• Withstand voltage between any two poles is 500 VAC, 1 mA.
• Withstand voltage between outer sheath and electrode is 500 VAC, 1 mA.
• Insulation resistance: 100MΩ @ 100V
• Temperature Resistance: 105℃
• Operating Temperature: -20℃ to 105℃
• Storage Temperature: -25℃ to 105℃
• RoHS compliant
