Name: Extractor iso-mix 100 (175-233 m3/h) blauberg
SKU: 3990633202
Availability: InStock

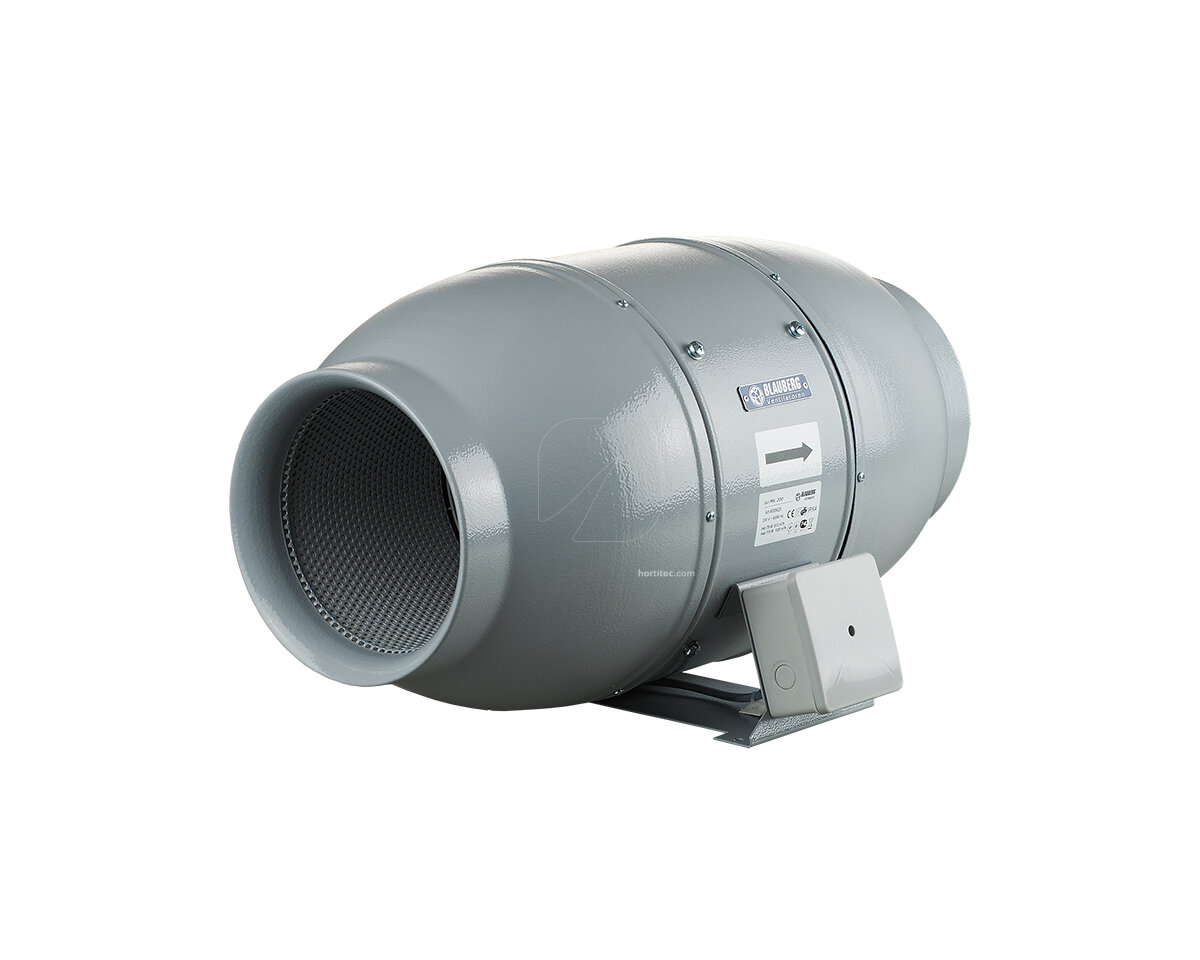

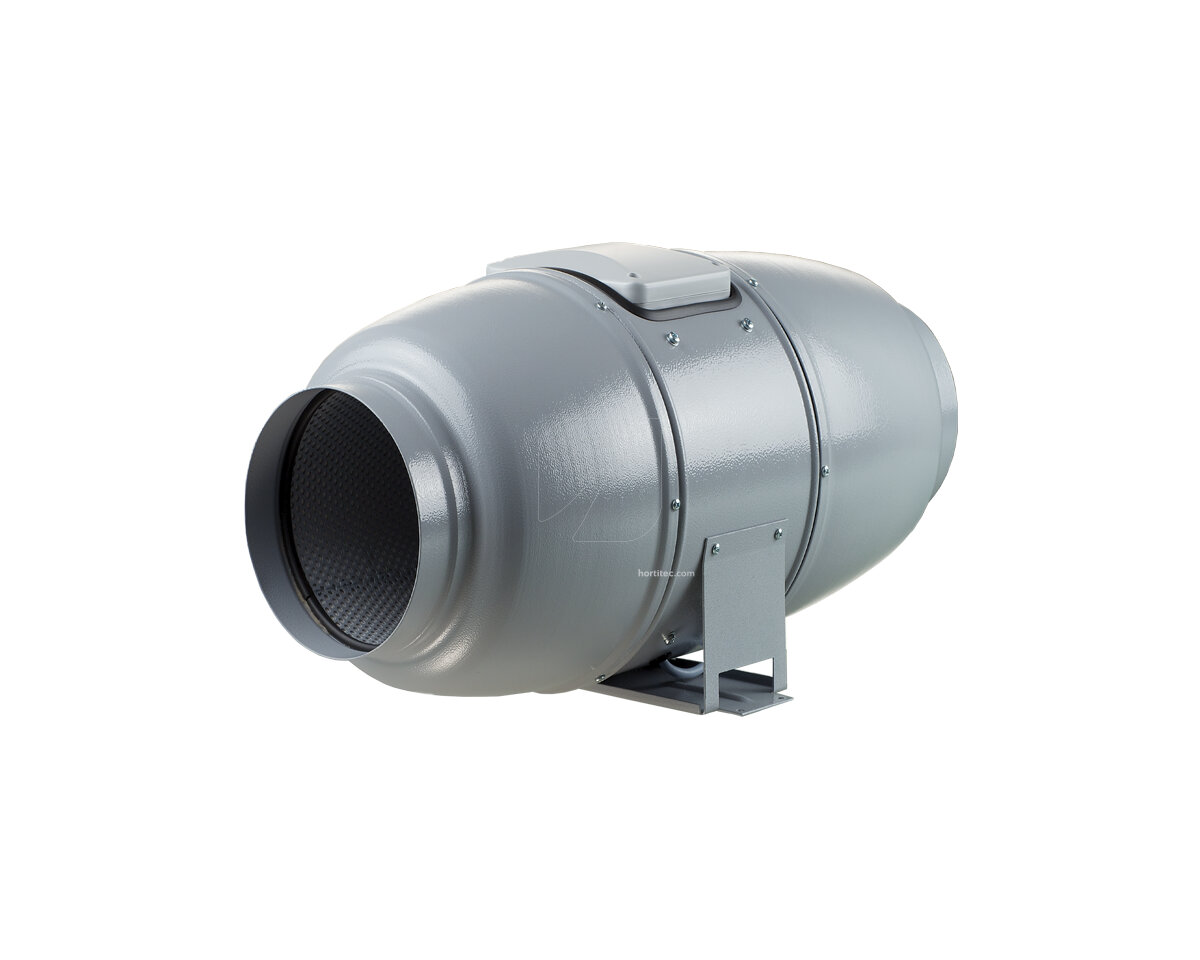

Iso-Mix extractor fan which is part of a rigid silencer made of sheet metal with insulating foam. Especially suitable for installations requiring high air flow, high pressure and low noise level. The housing is made of steel and the inside of the duct is coated with a 50 mm layer of a special mineral coating that acts against noise and temperature. The inner perforation of the duct is designed to absorb a wide range of sound frequencies.

Features of the Iso-Mix extractors

Integrated anchoring bracket in the structure
Two speeds (three positions VEL 1/OFF/ VEL 2)
Thermal protection.

Peso	11.11 kg
Speeds	2
Voltage	230
Maximum Flow (m	1035, 1315, 1920, 233, 347, 550
Minimum flow (m³ / h)	1035, 1510, 175, 235, 410, 790
Inlet Diameter (mm)	100, 125, 150, 200, 250, 315
Minimum speed consumption (W)	127, 213, 24, 25, 45, 78
r.p.m maximum	1920, 2315, 2460, 2610, 2640
r.p.m minimum	1510, 1660, 1960, 1985, 2000, 2015
Consumption (W)	110, 178, 26, 29, 313, 52
Weight (kg)	15, 25, 4.6, 8
Maximum sound level (dB)	28, 29, 33, 36, 38, 40
Dimensions (mm)	474×251, 505×251, 550×295, 579×263, 658×360, 780×434
Tube outlet diameter	123, 148, 198, 248, 313, 98
Minimum sound level (dB)	23, 24, 26, 31, 34, 36
